Sony new Vaio SA and SB-series with docking stations and battery slices

Who hasn’t stared jealously at the extensive docking and battery options available for the business class models from HP, Lenovo or Dell? Now Vaio users can profit from these features too. The mainstream consumer series, Vaio SA and SB, come with docking stations and battery slices, granting the user the ultimate battery life experience.

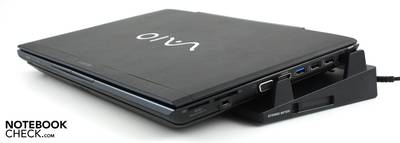

Docking Station VGP-PRS20

Battery Slice VGP-BPSC24

The VGP-BPSC24 battery slice is a flat battery (Li-Polymer, 6 cell), which fits under the base unit of the Vaio SA- and SB series models. It has a capacity of 4.400 mAh or 49 Wh (11.1V). The notebooks have have a connector on the bottom which allows them to attach themselves to the slice battery. However, this connector is not the same as the one found on the docking port. This additional battery slice VGP-BPSC24 costs around 130 Euros and weighs 520 grams.

During notebook use, the laptop batteries are designed in such a way that the slice battery will be used first. The slice battery can be charged via the notebook or  through a small charging dongle (while the battery is not connected), so theoretically, the 13.3 inch device can run the entire day without internet.

Acer Aspire 3000 Battery, Brand New 4400mAh Only AU$77.89

Acer TravelMate 5320 battery, Brand New 4400mAh Only AU $64.66

IBM ThinkPad R50 Battery, Brand New 4000mAh Only AU $55.26

The black battery slice looks good when attached to the notebook, even though its colour only fits to that of the black Vaio SB. The latch has two metal hooks on the locking side. The holes for these hooks, on the other side, are made of synthetic material. To prevent an accidental unlocking, the security mechanism is two-fold (lock and release). The perpendicular hole in the middle of the slice battery is for the docking station (without this hole, the slice HP COMPAQ Business Notebook NC6400 Battery would raise the laptop enough to free the non-functioning ports).

Laptop Computer Battery Run time

For our test we used the series model VPC-SB1S1E/W with an i5-2410M processor. This model comes with a 50 Wh battery (4.540 mAh). We dimmed the brightness to roughly 100 cd/m² during our test. The CPU load was low while surfing on the web (no videos, only websites). One downside is that the charging of the duo packet (notebook battery + battery slice) takes a while: 5:46 hours.

WLAN-Test @50 Wh Standard: 314 minutes (5:14h)

WLAN-Test @50 Wh + 49 Wh: 648 minutes (10:48h)
